SE5BY52, semi-integrated dishwasher

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE SE5BY52
• USP_MAIN
• ART_NUM SE5BY52
• CONSTR_TYPE Integrable
• INST_TYPE Semi-panelable
• COLUMN_INST noData
• CONTROL_TYPE Mecánico
• CONTROL_SETTING Pulsador;touch buttons
• TOP No
• DOOR_PANEL_OPTIONS No posible
• COL_MAIN Acero cepillado
• TUB_MAT_DISH Acero inoxidable
• HIDDEN_HEATING Si
• CONNECTION noData
• CURRENT 10
• VOLTAGE 230
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 180
• PLUG_TYPE Schuko con conexión a tierra
• INLET_LGTH 145
• OUTLET_LGTH 180
• PLINTH Ambos horizontal y vertical
• PLINTH_ADJ 40-90 / 90-220
• HEIGHT_TOP 0
• FEET_ADJ Sí - todas en la parte frontal
• HEIGHT_ADJ_MAX 60
• HEIGHT 810
• WIDTH 598
• DEPTH 570
• DEPTH_OPEN_DOOR 1150
• HEIGHT_PACKED 880
• WIDTH_PACKED 675
• DEPTH_PACKED 660
• HEIGHT_NICHE_SIZE_MIN 810
• HEIGHT_NICHE_SIZE_MAX 870
• WIDTH_NICHE_SIZE_MIN 600
• WIDTH_NICHE_SIZE_MAX 608
• DEPTH_NICHE_SIZE 570
• WEIGHT_NET 40.9
• WEIGHT_GROSS 41.9
• CONTROL_PANEL_LOCATION noData
• ADD_DOOR_OPTIONS noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE noData
• ENERGY_CLASS_2010 noData
• ENERGY_CONS_ANNUAL_2010 noData
• POWER_LEFT_ON_MODE_2010 noData
• POWER_OFF_MODE_2010 noData
• REF_PRG NORMAL
• DURATION_LEFT_ON_MODE_2010 noData
• CYCLE_TIME noData
• WATER_CONS_2010 noData
• PERF_CLEAN B
• PERF_DRY C
• SETTINGS 12
• NOISE 54
• ENERGY_CLASS
• WATER_ANNUAL
• ENERGY_CONS noData
• WATER_CONS 20.0
• ENERGY_ANNUAL noData
• ECO_LABEL
• TEMP_NUMBERS 2
• WASH_TEMP_MIN 30
• WASH_TEMP_MAX 65
• WATER_PROTECT_DESCR Protección sencilla
• WATER_SOFTENER Si
• WATER_HARDNESS_MAX 35°DH
• WATER_INTAKE_MAX_TEMP 60
• DRYING_SYSTEM Calor propio
• START_DELAY_OPTIONS Sin retardo
• TYPE_START_DELAY_OPTIONS N/A
• START_DELAY_TIME noData
• STOP_DELAY_TIME
• SINGLE_BASKET Sin posibilidad
• INDICATOR_PROGRESS noData
• INDICATOR_COUNT_DOWN No
• INDICATOR_END_OF_CYCLE N/A
• INDICATOR_RINSE Si
• LIST_PRGR FUERTE, Mix 65ºC, Prelavado, Programa eco
• PRG_NUMBER 4
• ADD_OPTIONS noData
• AUTOMATIC_PRG No
• SAFETY_DEVICE Protección frente al agua
• INTERIOR_LIGHT No
• UPPER_BASKET_ADJ No
• UPPER_BASKET_DISH noData
• LOWER_BASKET_DISH noData
• BASKET_HANDLE noData
• UPDATE_FUNCTION No
• ACCESSORIES_INCL noData
• ACCESSORIES
• ADD_SPRAY_WASH noData
• AVAILABLE_LANG noData
• CUTLERY_CARE
• HALF_LOAD No
• INTERIOR_LIGHT_TYPE No

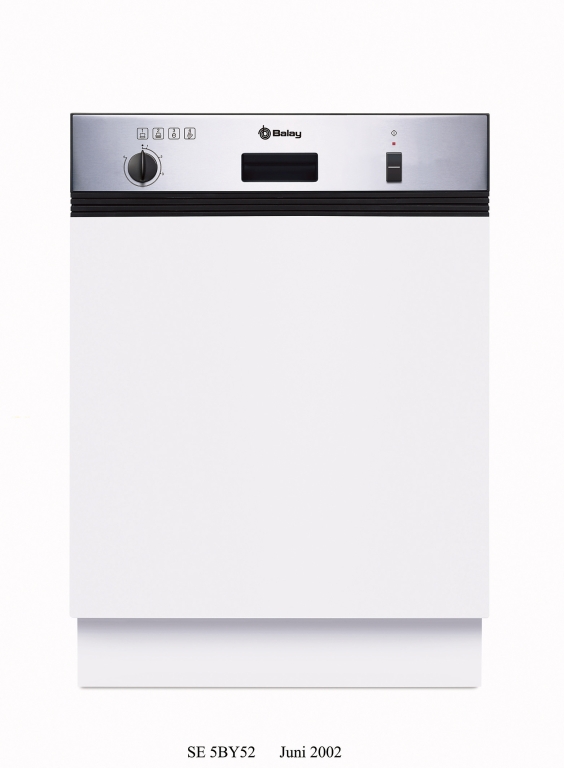

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA013401_SE5BY52_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID
• ADD_IMAGE2_ID
• ADD_IMAGE3_ID
• ADD_IMAGE4_ID
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1
• USP_2
• USP_3
• USP_4
• USP_5
• USP_6
• USP_7
• USP_9
• USP_8
• USP_10
• USP_11
• USP_12
• USP_13
• USP_14
• USP_15
• USP_16
• USP_17
• USP_18
• USP_19
• USP_20
