LI99SA684, Campana telescópica

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LI99SA684
• USP_MAIN La campana telescópica se integra a la perfección bajo los muebles de cocina, extrayéndola cuando es necesario.
• ART_NUM LI99SA684
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Indicador 7 segmentos luminosos;Touch control
• FRONT_PANEL_OPTIONS
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 266
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 175.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 378
• WIDTH 898
• DEPTH 290
• HEIGHT_PACKED 400
• WIDTH_PACKED 940
• DEPTH_PACKED 490
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 524
• WIDTH_NICHE_SIZE_MAX 524
• DEPTH_NICHE_SIZE 290
• WEIGHT_NET 14.6
• WEIGHT_GROSS 17.6
• AIR_EXHAUST_AVAILABLE
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 40.9
• FLUID_DYNAMIC_EFFICIENCY 33.9
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 55.5
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 87.2
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 503
• AIR_FLOW_MIN 277
• AIR_FLOW_BOOST 959.0
• SOUND_POWER_MAX 57
• SOUND_POWER_MIN 42
• SOUND_POWER_BOOST 71
• POWER_CONS_STANDBY 0.40
• POWER_OFF_MODE_2010
• NOISE 57
• NOISE_BOOST 71
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES Sensor calidad del aire
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 260
• MAX_OUTPUT_EXTRACTION 503
• BOOST_OUTPUT_EXTRACTION 959
• MAX_OUTPUT_RECIRCULATION 500
• BOOST_OUTPUT_RECIRCULATION 811
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 3
• LAMPS_TOTAL_POWER 6
• LUMINANCE_TOTAL 355
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ10ITP00,LZ11ITD11,LZ11IXB16,LZ11IXC16,LZ12ITI14,LZ49200,LZ49601
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED

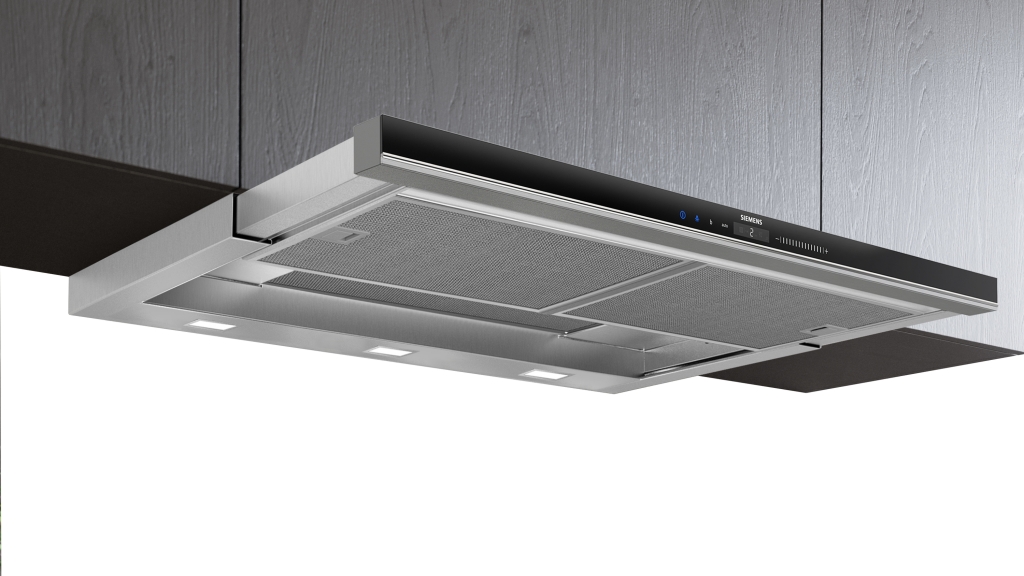

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/13484127_LI99SA684_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491606_LI99SA684_PGA2_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491311_LI99SA684_PGA1_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491272_LI97RA561_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491314_LI99SA684_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491313_LI99SA684_PGA5_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/23491312_LI99SA684_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor iQdrive: motor silencioso y de alto rendimiento que elimina todos los humos y olores.
• USP_2 Función auto: detecta humos y olores para regular la potencia de extracción de la campana automáticamente.
• USP_3 Iluminación LED: perfecta y eficiente visibilidad cuando se está cocinando.
• USP_4 El nivel intensivo aumenta temporalmente la capacidad de extracción cuando los vapores son especialmente intensos.
• USP_5 Electrónica touchControl fácil manejo y diseño elegante.
