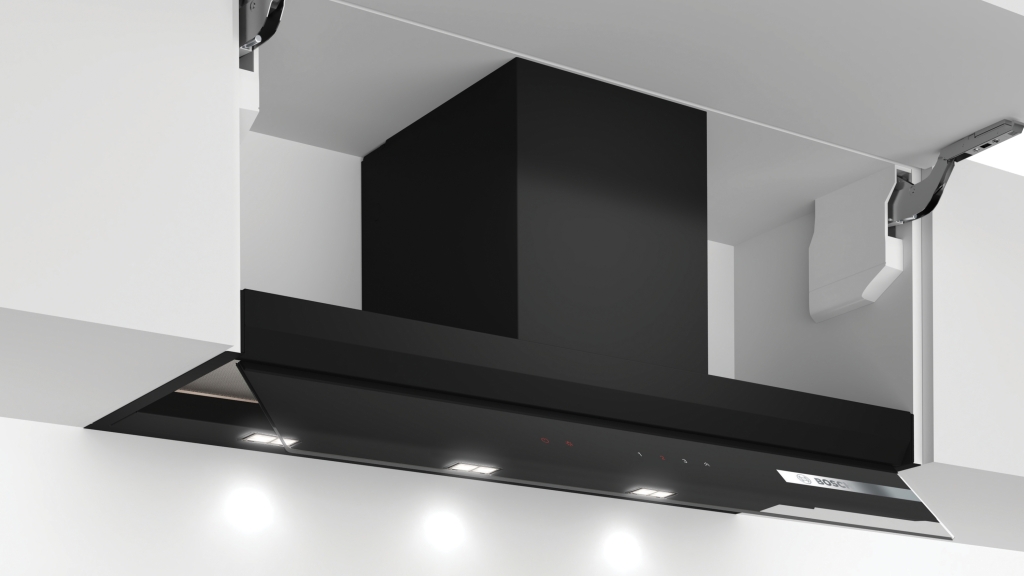

DBB97AM60, Campana decorativa integrada

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DBB97AM60
• USP_MAIN Campana decorativa perfectamente integrada para un aprovechamiento óptimo del espacio interior de su armario.
• ART_NUM DBB97AM60
• COL_BODY_HOODS Negro
• MAT_BODY Esmaltada
• COL_CHIMNEY noData
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Indicadores luminosos LED;Touch control
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 259
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 897
• DEPTH 298
• HEIGHT_PACKED 585
• WIDTH_PACKED 650
• DEPTH_PACKED 970
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 860
• WIDTH_NICHE_SIZE_MAX 860
• DEPTH_NICHE_SIZE 300
• WEIGHT_NET 14.2
• WEIGHT_GROSS 20.6
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 B
• ENERGY_ANNUAL 64.7
• FLUID_DYNAMIC_EFFICIENCY 27.6
• FLUID_DYNAMIC_CLASS B
• LIGHT_EFFICIENCY 56.8
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 90.2
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 460
• AIR_FLOW_MIN 264.6
• AIR_FLOW_BOOST 749.0
• SOUND_POWER_MAX 63
• SOUND_POWER_MIN 50
• SOUND_POWER_BOOST 73
• POWER_CONS_STANDBY 0.29
• POWER_OFF_MODE_2010 noData
• NOISE 63
• NOISE_BOOST 73
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 460
• BOOST_OUTPUT_EXTRACTION 749
• MAX_OUTPUT_RECIRCULATION 451
• BOOST_OUTPUT_RECIRCULATION 652
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 3
• LAMPS_TOTAL_POWER 9
• LUMINANCE_TOTAL 517
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 150 / 120
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DWZ0IT0P0,DWZ1IB6K1,DWZ1IB6N1,DWZ1IT1D1,DWZ1IX1C6,DWZ6IB1B4,DWZ6IB1I4
• SPEED_SETTINGS noData
• LAMPS_TYPE noData
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/17165595_DBB97AM60_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19429775_DBB97AM60_PGA5_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17820238_DBB97AM60_PGA1_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/17831322_DBB97AM60_PGA2_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19182425_DBB97AM60_PGA3_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19203813_DBB97AM60_PGA4_def.jpg
• ADD_IMAGE6_ID https://media3.bsh-group.com/Product_Shots/3000x3000/19449516_DBB97AM60_PGA6_def.jpg
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Silenciosa: potencia máxima de extracción con el mínimo ruido.
• USP_2 Gran espacio de almacenaje: La campana resiste hasta 10 kg de peso en cada lado.
• USP_3 Los filtros antigrasa se encargan de retener la mayor cantidad de grasa y particulas que hay en el aire, garantizando de esta manera el mejor rendimiento de la campana. Aptos para lavar en el lavavajillas.
