3BC065MN, Campana decorativa de pared box

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BC065MN
• USP_MAIN Cada detalle de esta campana decorativa en isla, de moderno diseño rectangular, está pensado para aportarle robustez.
• ART_NUM 3BC065MN
• COL_BODY_HOODS Negro
• MAT_BODY Acero inoxidable
• COL_CHIMNEY noData
• MAT_CHIMNEY Negro
• TYPOLOGY noData
• CONTROL_TYPE Mecánico
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Pulsador
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 216
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 150.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 53
• HEIGHT 53
• WIDTH 598
• DEPTH 500
• HEIGHT_PACKED 580
• WIDTH_PACKED 700
• DEPTH_PACKED 435
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 9.4
• WEIGHT_GROSS 17.8
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX 680
• CHIMNEY_HEIGHT_EXHAUST_MIN 415
• CHIMNEY_HEIGHT_RECIRC_MAX 770
• CHIMNEY_HEIGHT_RECIRC_MIN 495
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 C
• ENERGY_ANNUAL 91.8
• FLUID_DYNAMIC_EFFICIENCY 15.3
• FLUID_DYNAMIC_CLASS D
• LIGHT_EFFICIENCY 51.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 77.0
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 525
• AIR_FLOW_MIN 239
• AIR_FLOW_BOOST noData
• SOUND_POWER_MAX 69
• SOUND_POWER_MIN 51
• SOUND_POWER_BOOST noData
• POWER_CONS_STANDBY noData
• POWER_OFF_MODE_2010 0.00
• NOISE 69
• NOISE_BOOST noData
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Push buttons
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 210
• MAX_OUTPUT_EXTRACTION 525
• BOOST_OUTPUT_EXTRACTION noData
• MAX_OUTPUT_RECIRCULATION 319
• BOOST_OUTPUT_RECIRCULATION noData
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 6
• LUMINANCE_TOTAL 304
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 120
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3
• LAMPS_TYPE LED

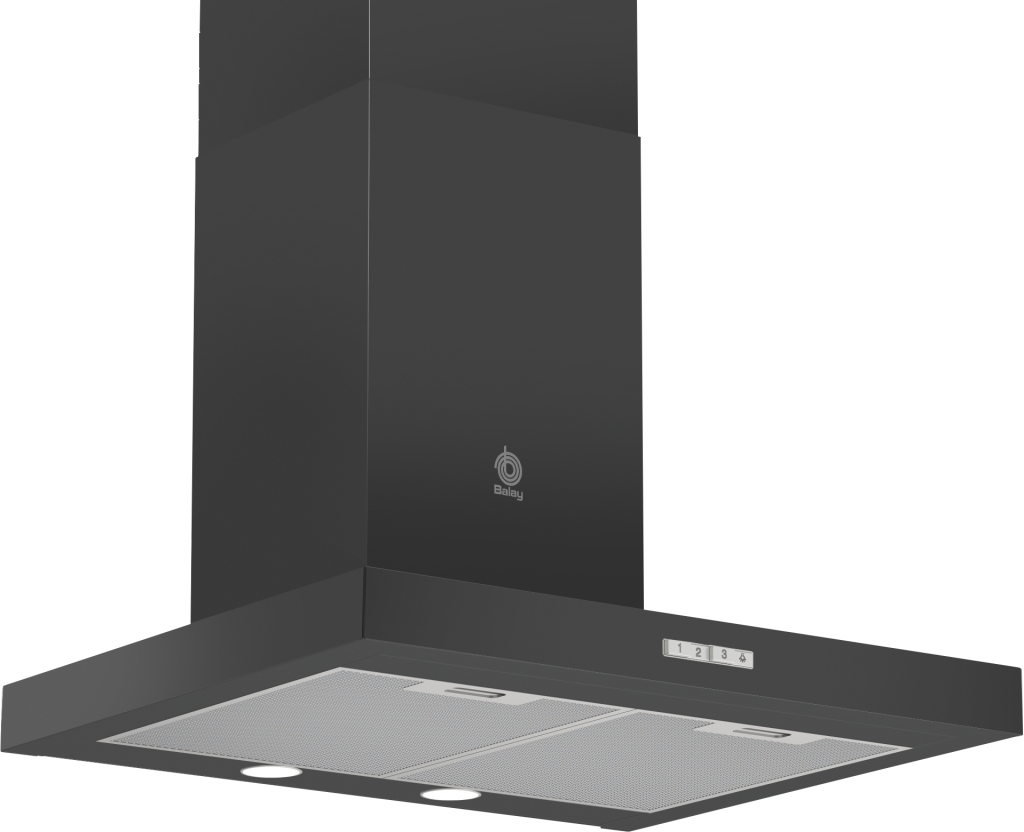

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/21395233_3BC065MN_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/6902756_3BC095MX_PGA4_def.jpg
• ADD_IMAGE2_ID
• ADD_IMAGE3_ID
• ADD_IMAGE4_ID
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Filtros de diseño tradicional de aluminio multicapa, de gran eficiencia y lavables en lavavajillas.
• USP_2 Iluminación LED: la más efectiva, duradera y eficiente, para no perder detalle.
• USP_3 La instalación en recirculación te permite disfrutar de aire limpio aunque la cocina no tenga salida de humos.
