3BD866MX, Campana decorativa integrada

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE 3BD866MX
• USP_MAIN La campana decorativa integrable permite adaptarse a las nuevas tendencias de cocina de ocultar la campana tras el mueble y proteger con su visera al mueble de humos y olores.
• ART_NUM 3BD866MX
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Acero inoxidable
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Mecánico
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING Mando giratorio ocultable;No tiene
• FRONT_PANEL_OPTIONS noData
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 255
• CURRENT noData
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 150.0
• PLUG_TYPE Euro plug w/ earthing 16A/250V
• HEIGHT_WITHOUT_CHIMNEY 60
• HEIGHT 60
• WIDTH 594
• DEPTH 310
• HEIGHT_PACKED 390
• WIDTH_PACKED 490
• DEPTH_PACKED 660
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN 562
• WIDTH_NICHE_SIZE_MAX 562
• DEPTH_NICHE_SIZE 310
• WEIGHT_NET 4.8
• WEIGHT_GROSS 9.2
• AIR_EXHAUST_AVAILABLE noData
• CHIMNEY_HEIGHT_EXHAUST_MAX noData
• CHIMNEY_HEIGHT_EXHAUST_MIN noData
• CHIMNEY_HEIGHT_RECIRC_MAX noData
• CHIMNEY_HEIGHT_RECIRC_MIN noData
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 56.5
• FLUID_DYNAMIC_EFFICIENCY 29.2
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 68.1
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 75.1
• GREASE_FILTER_CLASS C
• AIR_FLOW_MAX 620
• AIR_FLOW_MIN 255
• AIR_FLOW_BOOST noData
• SOUND_POWER_MAX 70
• SOUND_POWER_MIN 50
• SOUND_POWER_BOOST noData
• POWER_CONS_STANDBY noData
• POWER_OFF_MODE_2010 0.00
• NOISE 70
• NOISE_BOOST noData
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Mando giratorio escamoteable
• AUTOMATIC_CONTROL_DEVICES noData
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 250
• MAX_OUTPUT_EXTRACTION 620
• BOOST_OUTPUT_EXTRACTION noData
• MAX_OUTPUT_RECIRCULATION 594
• BOOST_OUTPUT_RECIRCULATION noData
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 2
• LAMPS_TOTAL_POWER 5
• LUMINANCE_TOTAL 76
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES
• SPEED_SETTINGS 3
• LAMPS_TYPE LED

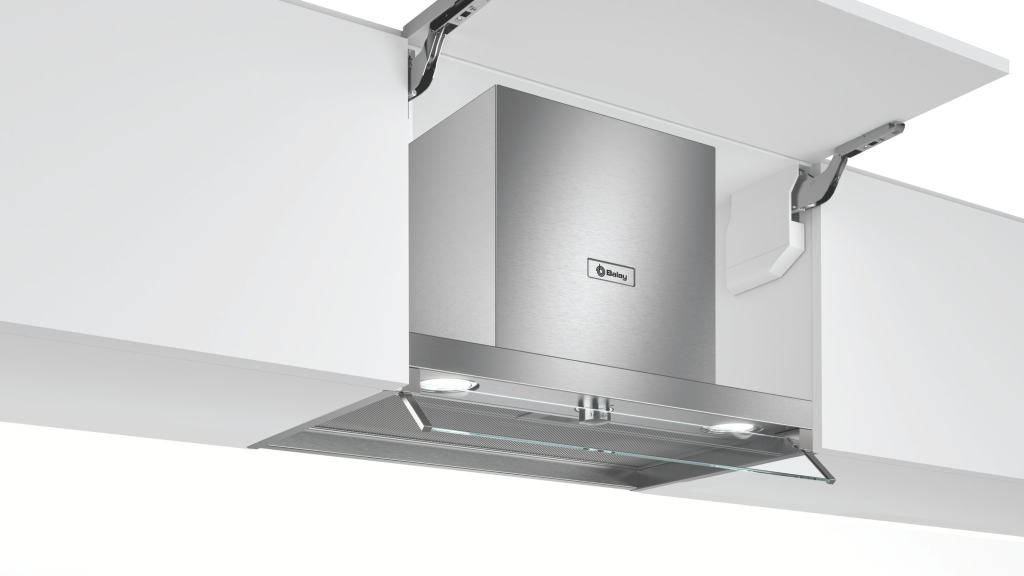

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02897528_3BD866MX_Integrated_Box_Balay_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02945900_3BD866MX_Integrated_Box_Balay_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02945903_3BD866MX_Integrated_Box_Balay_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02945906_3BD866MX_Integrated_Box_Balay_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02945915_3BD866MX_Integrated_Box_Balay_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02945911_3BD866MX_Integrated_Box_Balay_PGA5_def.jpg
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Gracias a su control mecánico, accederás cómodamente al nivel de potencia deseado.
• USP_2 Adaptable a cada espacio y cocina. Posibilidad de instalación en recirculación.
• USP_3 Filtros de diseño tradicional de aluminio multicapa, de gran eficiencia y lavables en lavavajillas.
