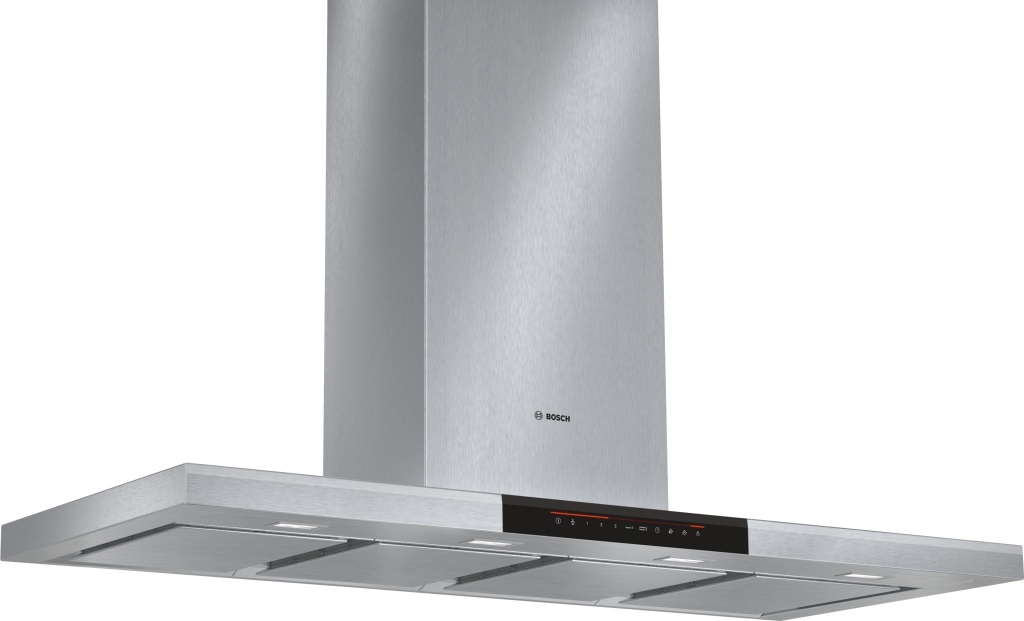

DWB121K50, Campana decorativa de pared

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE DWB121K50
• USP_MAIN Campana de pared: libertad para el diseño de la cocina.
• ART_NUM DWB121K50
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY Acero inoxidable
• MAT_CHIMNEY noData
• TYPOLOGY noData
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Montaje en pared
• CONTROL_SETTING Touch control
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 272
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 1200
• DEPTH 500
• HEIGHT_PACKED 580
• WIDTH_PACKED 620
• DEPTH_PACKED 1320
• HEIGHT_NICHE_SIZE_MIN noData
• HEIGHT_NICHE_SIZE_MAX noData
• WIDTH_NICHE_SIZE_MIN noData
• WIDTH_NICHE_SIZE_MAX noData
• DEPTH_NICHE_SIZE noData
• WEIGHT_NET 24.4
• WEIGHT_GROSS 35.4
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX 908
• CHIMNEY_HEIGHT_EXHAUST_MIN 582
• CHIMNEY_HEIGHT_RECIRC_MAX 1018
• CHIMNEY_HEIGHT_RECIRC_MIN 582
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 43.2
• FLUID_DYNAMIC_EFFICIENCY 32.8
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 97.3
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 94.1
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 633
• AIR_FLOW_MIN 222
• AIR_FLOW_BOOST 881.0
• SOUND_POWER_MAX 62
• SOUND_POWER_MIN 42
• SOUND_POWER_BOOST 68
• POWER_CONS_STANDBY 0.42
• POWER_OFF_MODE_2010 noData
• NOISE 62
• NOISE_BOOST 72
• ECO_LABEL
• MANUAL_CONTROL_DEVICES touch control
• AUTOMATIC_CONTROL_DEVICES Sensor calidad del aire
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 260
• MAX_OUTPUT_EXTRACTION 633
• BOOST_OUTPUT_EXTRACTION 830
• MAX_OUTPUT_RECIRCULATION 400
• BOOST_OUTPUT_RECIRCULATION 430.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER 12
• LUMINANCE_TOTAL 1167
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE noData
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL noData
• ACCESSORIES DHZ1223,DHZ1233,DHZ5345,DSZ5201,DSZ6240
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00754456_400510_DWB121K50_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00883913_516870_DWB121K50_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00883896_516853_DWB091K50_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00883909_516866_DWB121K50_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00883910_516867_DWB121K50_PGA4_def.jpg
• ADD_IMAGE5_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00922436_553069_DWB091E59_Randabsaugung_PGA3_def.jpg
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Campana silenciosa: máxima potencia de extracción con el mínimo ruido.
• USP_2 Interior blindado: limpieza fácil y segura.
• USP_3 Motor EcoSilence: campana eficiente y silenciosa.
