LD97DBM60, Extractor de encimera telescópico

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LD97DBM60
• USP_MAIN Extractor de encimera con un impresionante diseño y prestaciones que ofrece máxima flexibilidad en su instalación.
• ART_NUM LD97DBM60
• COL_BODY_HOODS Negro
• MAT_BODY Acero inoxidable, Cristal
• COL_CHIMNEY
• MAT_CHIMNEY
• TYPOLOGY Convencional
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Integrable
• CONTROL_SETTING glasstouch;Touch control
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en el cuerpo de la campana
• OPERATING_MODE Convertible
• CONNECTION 317
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50
• CERTIFICATES
• CORD_LGTH 150.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY
• HEIGHT 738
• WIDTH 912
• DEPTH 268
• HEIGHT_PACKED 440
• WIDTH_PACKED 1000
• DEPTH_PACKED 850
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN 844
• WIDTH_NICHE_SIZE_MAX 844
• DEPTH_NICHE_SIZE 104
• WEIGHT_NET 31.1
• WEIGHT_GROSS 46.9
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX
• CHIMNEY_HEIGHT_EXHAUST_MIN
• CHIMNEY_HEIGHT_RECIRC_MAX
• CHIMNEY_HEIGHT_RECIRC_MIN
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A
• ENERGY_ANNUAL 54.2
• FLUID_DYNAMIC_EFFICIENCY 31.0
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 29.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 66.0
• GREASE_FILTER_CLASS D
• AIR_FLOW_MAX 530
• AIR_FLOW_MIN 260
• AIR_FLOW_BOOST 750.0
• SOUND_POWER_MAX 62
• SOUND_POWER_MIN 43
• SOUND_POWER_BOOST 67
• POWER_CONS_STANDBY 0.49
• POWER_OFF_MODE_2010
• NOISE 62
• NOISE_BOOST 67
• ECO_LABEL
• MANUAL_CONTROL_DEVICES GlasTouch, touch control
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 310
• MAX_OUTPUT_EXTRACTION 530
• BOOST_OUTPUT_EXTRACTION 750
• MAX_OUTPUT_RECIRCULATION 452
• BOOST_OUTPUT_RECIRCULATION 500.0
• LIGHT_CNT_TYPE Encendido/Apagado
• LIGHTS_NUMBER 1
• LAMPS_TOTAL_POWER
• LUMINANCE_TOTAL 203
• GREASE_FILTER_MAT Aluminio lavable
• AIR_OUTLET_DIAMETER 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP No
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ29IDM00,LZ29IDQ00
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE N/A

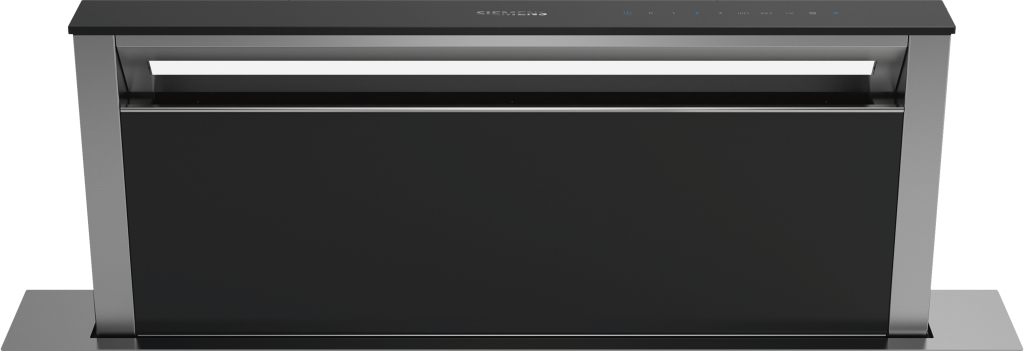

• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02423723_LD97DBM60_Downdraft_Siemens_STP_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02517381_LD97DBM60_Downdraft_Siemens_PGA1_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02517455_LD97DBM60_Downdraft_Siemens_PGA2_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02517466_LD97DBM60_Downdraft_Siemens_PGA3_def.jpg
• ADD_IMAGE4_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA02517679_LD96DAM50_Downdraft_Siemens_PGA4_def.jpg
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Gran capacidad de extracción de 750 m3/h.
• USP_2 Máxima flexibilidad de instalación del motor: permite aprovechar al máximo el espacio bajo la encimera.
• USP_3 Iluminación LED: perfecta y eficiente visibilidad cuando se está cocinando.
