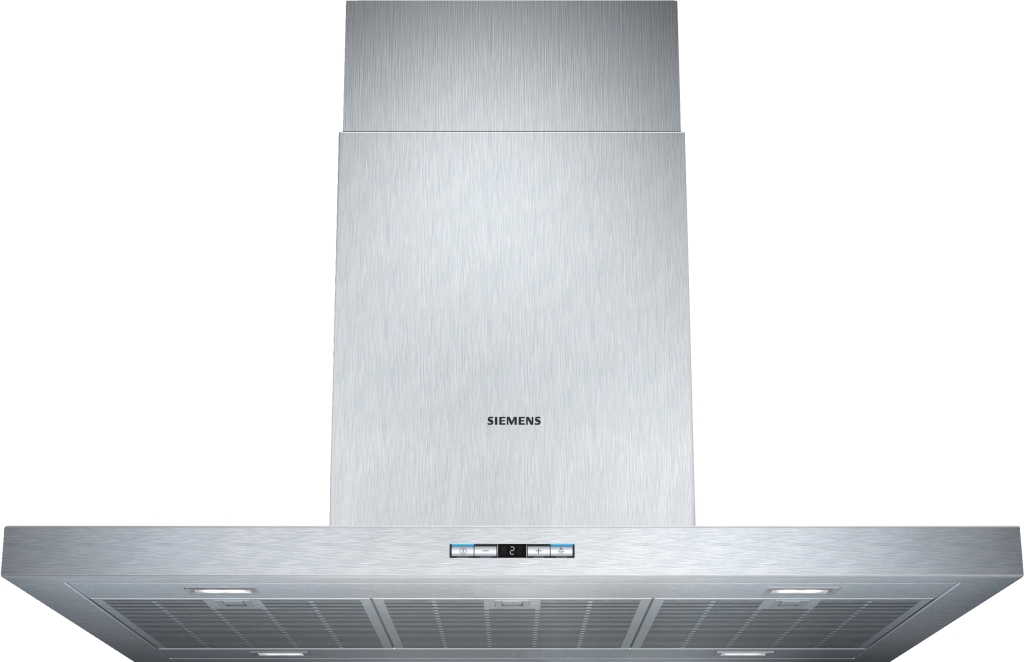

LF98BB542, island cooker hood

FICHA TÉCNICA

PRODUCTO

• FAMILY
• CODE LF98BB542
• USP_MAIN Campana isla: la solución perfecta para las zonas de cocción en isla.
• ART_NUM LF98BB542
• COL_BODY_HOODS Acero inoxidable
• MAT_BODY Acero inoxidable
• COL_CHIMNEY
• MAT_CHIMNEY Acero inoxidable
• TYPOLOGY Isla/Techo
• CONTROL_TYPE Electrónica
• CONSTR_TYPE Integrable
• INST_TYPE Isla
• CONTROL_SETTING Indicador 7 segmentos luminosos;Teclas de corto recorrido
• FRONT_PANEL_OPTIONS N/A
• MOTOR_LOCATION Motor integrado en la chimenea de la campana
• OPERATING_MODE Convertible
• CONNECTION 172
• CURRENT 10
• VOLTAGE 220-240
• FREQUENCY 50; 60
• CERTIFICATES
• CORD_LGTH 130.0
• PLUG_TYPE Schuko con conexión a tierra
• HEIGHT_WITHOUT_CHIMNEY 46
• HEIGHT 46
• WIDTH 900
• DEPTH 600
• HEIGHT_PACKED 835
• WIDTH_PACKED 610
• DEPTH_PACKED 1035
• HEIGHT_NICHE_SIZE_MIN
• HEIGHT_NICHE_SIZE_MAX
• WIDTH_NICHE_SIZE_MIN
• WIDTH_NICHE_SIZE_MAX
• DEPTH_NICHE_SIZE
• WEIGHT_NET 35.8
• WEIGHT_GROSS 38.0
• AIR_EXHAUST_AVAILABLE Si
• CHIMNEY_HEIGHT_EXHAUST_MAX 878
• CHIMNEY_HEIGHT_EXHAUST_MIN 698
• CHIMNEY_HEIGHT_RECIRC_MAX 998
• CHIMNEY_HEIGHT_RECIRC_MIN 698
• ASSEMBLY_LEVEL
• ENERGY_LABEL_APPLICABLE Si
• ENERGY_CLASS_2010 A+
• ENERGY_ANNUAL 32.5
• FLUID_DYNAMIC_EFFICIENCY 37.9
• FLUID_DYNAMIC_CLASS A
• LIGHT_EFFICIENCY 74.0
• LIGHT_CLASS A
• GREASE_FILTER_EFFICIENCY 88.3
• GREASE_FILTER_CLASS B
• AIR_FLOW_MAX 460
• AIR_FLOW_MIN 300
• AIR_FLOW_BOOST 870.0
• SOUND_POWER_MAX 54
• SOUND_POWER_MIN 44
• SOUND_POWER_BOOST 69
• POWER_CONS_STANDBY 0.23
• POWER_OFF_MODE_2010
• NOISE 54
• NOISE_BOOST 69
• ECO_LABEL
• MANUAL_CONTROL_DEVICES Teclas de corto recorrido
• AUTOMATIC_CONTROL_DEVICES
• REMOTE_CONTROL No
• MOTOR_NUMBER 1
• TOTAL_POWER_MOTORS 160
• MAX_OUTPUT_EXTRACTION 460
• BOOST_OUTPUT_EXTRACTION 870
• MAX_OUTPUT_RECIRCULATION 340
• BOOST_OUTPUT_RECIRCULATION 430.0
• LIGHT_CNT_TYPE Continuo
• LIGHTS_NUMBER 4
• LAMPS_TOTAL_POWER 12
• LUMINANCE_TOTAL 888
• GREASE_FILTER_MAT Acero inoxidable lavable
• AIR_OUTLET_DIAMETER 120 / 150
• GREASE_FILTER_TYPE
• NO_RETURN_FLAP Si
• ODOUR_FILTER No
• ACCESSORIES_INCL
• ACCESSORIES LZ00XXP00,LZ12285,LZ12310,LZ12385,LZ12510,LZ12530,LZ53850,LZ56200,LZ57600
• SPEED_SETTINGS 3 niveles + 2 intensivos
• LAMPS_TYPE LED
• PRODUCT_IMAGE https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00662045_LF98BB542_def.jpg
• MEASURE_IMAGE
• PANEL_IMAGE
• ADD_IMAGE1_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00922447_553079_LC97BC542_basic-electronic_def.jpg
• ADD_IMAGE2_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00922439_553072_ LC97BC542_Edelsstahllochblech_PGA5_def.jpg
• ADD_IMAGE3_ID https://media3.bsh-group.com/Product_Shots/3000x3000/MCSA00923956_554719_ LC97BB542_PGA6_def.jpg
• ADD_IMAGE4_ID
• ADD_IMAGE5_ID
• ADD_IMAGE6_ID
• ADD_IMAGE7_ID
• ENERGY_LABEL
• PRODUCT_FICHE
• USP_1 Motor iQdrive: potencia y silencio con 10 años de garantía.
• USP_2 Extremadamente silenciosa.
• USP_3 El modo intensivo aumenta la capacidad de extracción cuando se necesita, y se desconecta automáticamente transcurridos 6 min.
• USP_4 La iluminación LED de bajo consumo garantiza una óptima visibilidad a la hora de cocinar.
